Types
of Capacitors: |
|
| |
1)

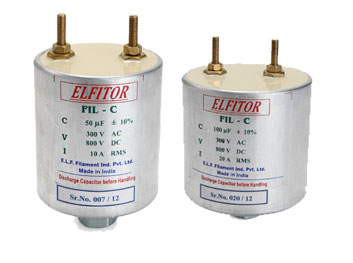

Filter Capacitor
2) DC Link Capacitor
|
|
| |
Application: |
|
| |
Filter Capacitor
1) In UPS Systems
2) High Frequency Invertors
3) Special Applications
|
|
| |
|
|
| |
Specifications
(50 µF) |
|
| |
1)
Capacitance : 50 µF @ 25 deg C, 1 KHz
2) Tolerance : ± 10%
3) Rated A.C Voltage : 300 V
4) Rated D.C Voltage : 800 V
5) I rms : 10 A
6) TAN @ 1KHz : ≤ 0.0025
7) Insulation Resistance (500 V.D.C for 1 min.) : ≥ 50 MΩ
8) D.C Test Voltage : 1200 V for 1 min.
9) H.V Insulation Test between Shorted Terminals & Container :
2500 V for 1 min.
10) Casing Material : Aluminium
11) Terminals : M5 Brass Screws
12) Filling Material : PolyUrethane Resin
|
|
| |
Specifications
(100 µF) |
|
| |
1)
Capacitance : 100 µF @ 25 deg C, 1 KHz
2) Tolerance : ± 10%
3) Rated A.C Voltage : 300 V
4) Rated D.C Voltage : 800 V
5) I rms : 20 A
6) TAN @ 1KHz : ≤ 0.0025
7) Insulation Resistance (500 V.D.C for 1 min.) : ≥ 50 MΩ
8) D.C Test Voltage : 1200 V for 1 min.
9) H.V Insulation Test between Shorted Terminals & Container :
2500 V for 1 min.
10) Casing Material : Aluminium
11) Terminals : M5 Brass Screws
12) Filling Material : PolyUrethane Resin
|
|
| |
For customized requirements, please contact sales@elfindia.com
or use Contact
Form |
|
| |
|
|
|
|
|
|
|
